Ultimate Guide to Installing Your Solar Security Camera
Proper installation is crucial for maximizing the performance and longevity of your solar security camera. Unlike traditional wired cameras, solar-powered models offer incredible flexibility but require strategic planning to ensure optimal sun exposure and coverage. This comprehensive guide walks you through the entire installation process, from planning to troubleshooting.
Pre-Installation Planning
Before drilling any holes, spend 20 minutes planning your installation. This preparation will save you hours of frustration and ensure optimal camera performance.
Assess Your Property's Security Needs
Walk around your property and identify vulnerable areas: entry points (doors, windows, garage), blind spots, and valuable items. Consider the field of view needed for each camera and potential obstacles.
Check Sunlight Exposure
Use a sun tracking app or simply observe sunlight patterns over 1-2 days. Ideal solar panel placement receives at least 6-8 hours of direct sunlight daily. Note that the sun's path changes with seasons—what's sunny in summer might be shaded in winter.
Test Wi-Fi Signal Strength
Use your smartphone or a Wi-Fi analyzer app to check signal strength at potential camera locations. Weak signal (< 2 bars) may need a Wi-Fi extender. Most solar cameras require a minimum of 2.4GHz network with stable connection.
Tools You'll Need:
- Power drill with appropriate bits for your surface (masonry, wood, etc.)
- Screwdriver set (Phillips and flathead)
- Level to ensure proper alignment
- Measuring tape
- Pencil for marking drill points
- Ladder (if installing at height)
- Smartphone with the camera's companion app installed
Materials Included with Most Solar Cameras:
- Solar security camera unit
- Solar panel with mounting bracket
- Weatherproof mounting screws and anchors
- USB charging cable (for initial setup)
- Quick start guide
Optimal Solar Panel Placement Guide
Solar panel positioning is the most critical aspect of your installation. Follow these guidelines for maximum energy harvest:
Northern Hemisphere
Face solar panels true south (not magnetic south) for maximum annual energy production. Adjust angle to approximately your latitude + 15° in winter, or latitude - 15° in summer.
Southern Hemisphere
Face solar panels true north. Tilt angle should be approximately your latitude + 15° in winter, or latitude - 15° in summer for optimal performance.
Troubleshooting Low Sun Areas
If limited to north-facing surfaces (in northern hemisphere), increase panel angle to 60-70° to capture more low winter sun. Consider a longer cable to relocate panel to sunnier spot.
Pro Tip: Seasonal Adjustment
For maximum efficiency, adjust your solar panel angle seasonally: steeper in winter (to catch low sun), flatter in summer. Many adjustable mounts make this a 5-minute task that can boost winter performance by 30% or more.

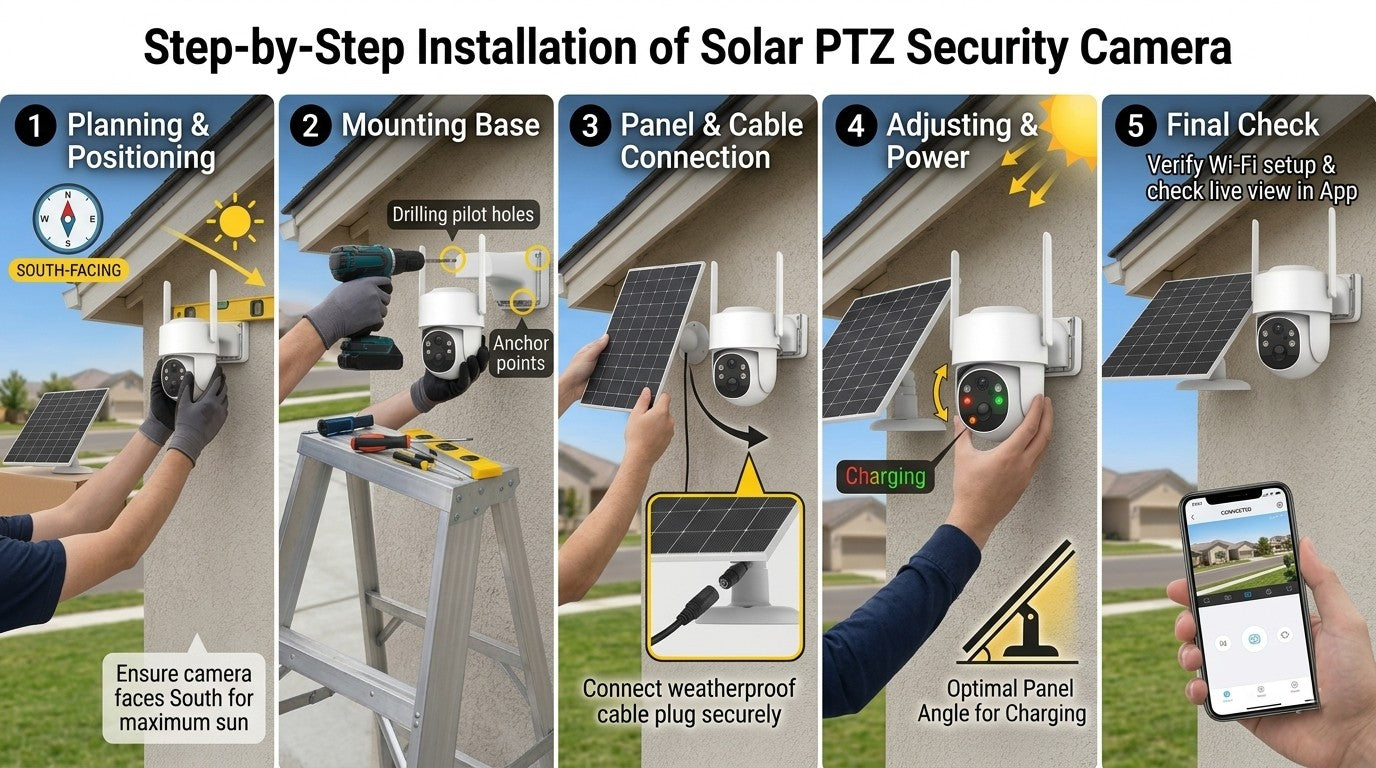

Step-by-Step Installation Process
Charge Camera Before Installation
Before mounting, charge your camera to at least 50% using the provided USB cable. This ensures uninterrupted setup and allows the solar panel to maintain rather than build charge from zero.
Mount the Solar Panel
Using the mounting bracket, secure the solar panel to a south-facing surface (north-facing in southern hemisphere) with the provided screws. Ensure it's angled properly for your location (see guide above). Use a level to ensure it's not tilted sideways.
Mount the Camera Unit
Position the camera 8-10 feet above ground for optimal coverage while being out of easy reach. Point it slightly downward for better facial recognition. Avoid pointing directly at light sources or reflective surfaces.
Connect and Route Cables
Connect the solar panel cable to the camera. Use cable clips to secure the cable along walls or eaves. Leave a small drip loop before the connection point to prevent water running into the port.
Configure Through Mobile App
Download the manufacturer's app, create an account, and follow the in-app instructions to connect your camera to Wi-Fi. Set up motion zones, alerts, and recording preferences according to your needs.
Test and Finalize
Verify the camera is charging (check app for battery/charging status). Test motion detection by walking through monitored areas. Adjust camera angle if needed and secure all connections.
Safety First!
Always use a stable ladder with someone spotting you when working at height. Turn off power if drilling near electrical lines. Check for hidden pipes/wires before drilling into walls. Wear safety glasses when drilling.
Troubleshooting Common Installation Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera not charging | Solar panel in shade, dirty panel, faulty connection | Relocate panel, clean with soft cloth, check all connections |
| Weak Wi-Fi signal | Camera too far from router, thick walls blocking signal | Install Wi-Fi extender, consider mesh network, reposition camera |
| False motion alerts | Camera aimed at moving trees, busy street, or light changes | Adjust motion zones in app, change sensitivity, reposition camera |
| Poor night vision | Lens dirty, IR LEDs obstructed, reflective surface nearby | Clean lens, ensure nothing blocks IR LEDs, avoid pointing at windows |
| Camera offline frequently | Weak Wi-Fi, power issues, firmware needs update | Improve Wi-Fi signal, ensure proper charging, update firmware |
Post-Installation Checklist
Maintenance Tip
Clean your solar panel every 3-6 months with a soft cloth and mild soapy water. Dust, pollen, and bird droppings can reduce efficiency by up to 30%. Check all connections seasonally, especially after extreme weather.
